Features
◼ Low Hysteresis
◼ High respond
◼ Compact design
◼ DC Solenoids

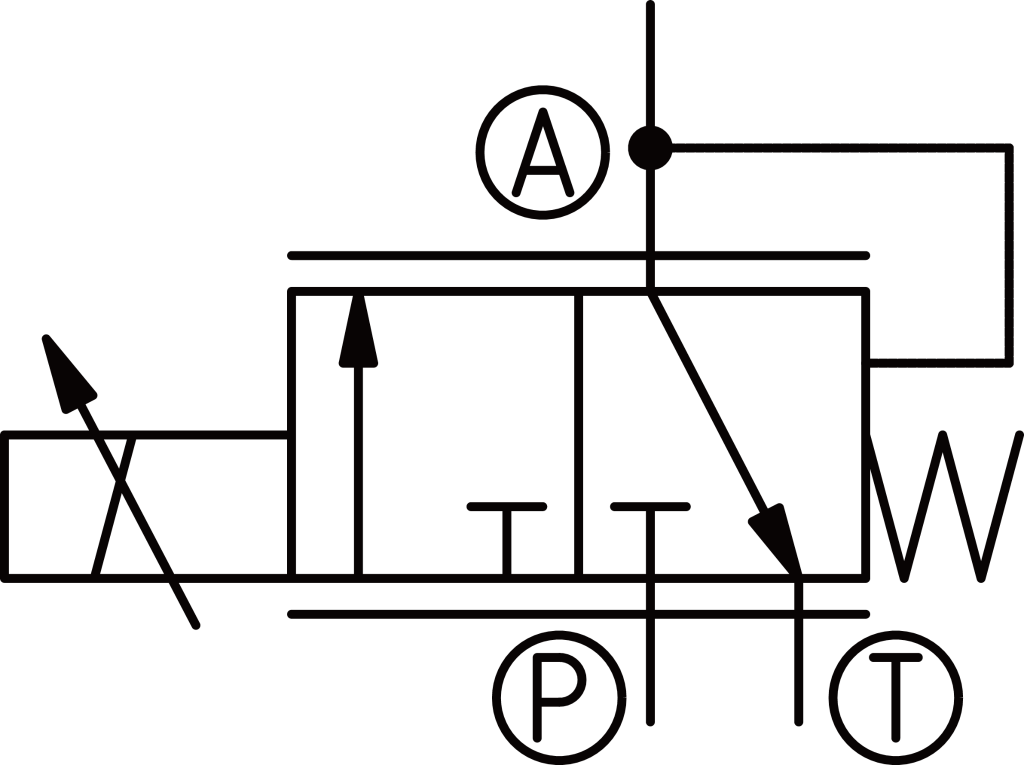

Symbol
Functional description
When the coil is deenergized, the PPRV04 allows the oil to flow freely from A to Port T. When the coil is energized, P will connect to A. The control (pressure reducing) A-port pressure will change proportionally to the current in the coil. If the pressure at A exceeds the set value generated by the coil, the overflow from A to T. Attention: The pressure of the T port is added 1:1 to the pressure setpoint.
Installation recommendation: If possible, the valve should be positioned below the tank level to maintain the amount of oil in the armature and thus avoid instability caused by residual air bubbles. Or install the valve horizontally for best performance.
Order code
PPRV04 | - | 20 | 24 | A | N |
① | ② | ③ | ④ | ⑤ |
① Products series PPRV04 series ② Pressure range 20：20 bar 25：25 bar ③ Control Voltage 24：24 V 12：12 V | ④ Connector A：AMP Junior Timer D：Deutsch DT04-2P ⑤ Seals N：NBR V：FKM （Suitable for high temperatures and special media） |
Technical data
Hydraulic data | ||
Max. Pressure P | 50 bar | |
Max. Pressure T | 30 bar | |
Hysteresis （w/PWM） | <0.4 bar(pA=20bar) <0.5 bar(pA=25bar) | |
Filtration of P port | 125μm | |
Valve Material | Spool is made of reinforced alloy steel; housing is nickel-zinc plated | |
Filtration | ISO4406：20/18/15 | |
Working Oil | mineral hydraulic oil HL/HLP ISO 11158 | |
Temperature | -40℃~+105℃ | |
Viscosity | 5~500 cSt | |
Electrical data | ||
Voltage | 12 V | 24 V |
Max. Current | 1500 mA | 750 mA |
Resistance | 4.8 Ω | 20.8 Ω |
Current consumption | 24 mA | 20 mA |
Control Signal | Current PWM（Recommend 100Hz） | |
Connector | AMP Junior Timer Deutsch DT04-2P | |
Protection | IP6K6/IPX9K | |
Wire standards | UL 758 | |
Insulating materials | PVC | |

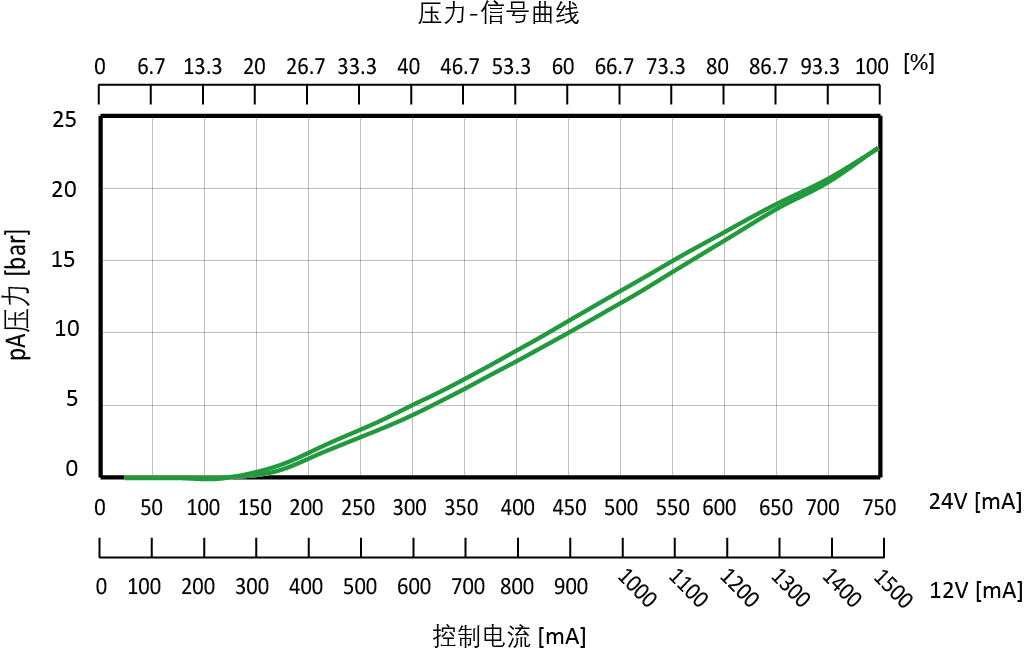

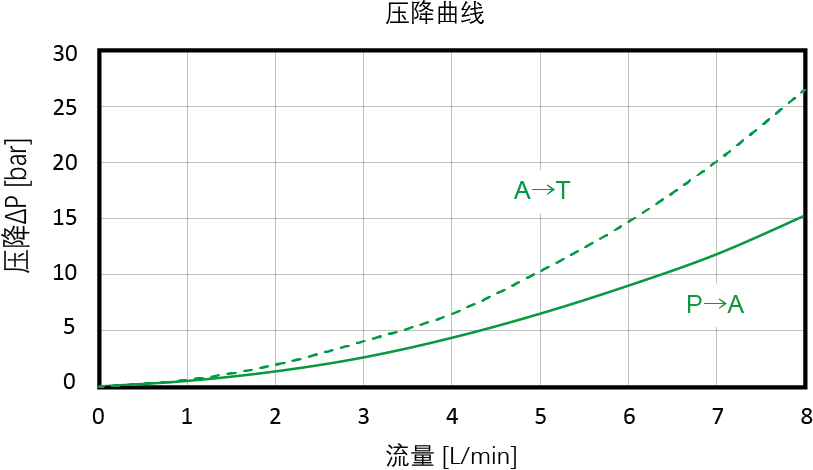

Performance curve
Dimension
AMP Junior Timer
Deutsch DT04-2P
Cavity dimension
