- FEATURES
- PERFORMANCE
Features
◼ High respond
◼ Compact design

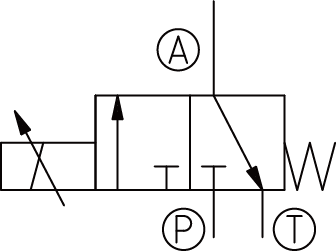

Symbol

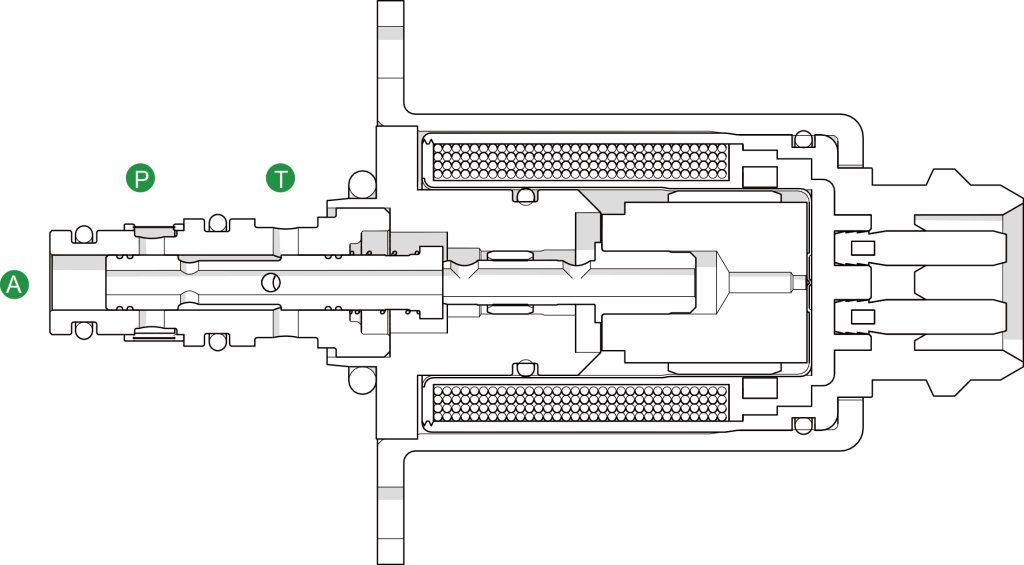

Functional description
When no current is passing through coil, SV04 allows oil to flow freely from A to Port T. When the coil is energized, P will connect to A.
Order code
SV04 | - | 24 | A | N |
① | ③ | ④ | ⑤ |
① Products series SV04 series ② Voltage 24：24 V 12：12 V | ③ Connector A：AMP Junior Timer D：Deutsch DT04-2P ④ Seal N：NBR V：FKM （For high temperatures and special media） |
Technical Data
Hydraulic data
Max. Pressure P
50 bar
Max. Pressure T
30 bar
Respond
On
<60 ms
Off
<100 ms
Filtration of P port
125μm
Valve Material
Spool is made of reinforced alloy steel; housing is nickel-zinc plated
Filtration
ISO4406：20/18/15
Working Oil
Mineral hydraulic oil ISO 11158
Temperature
-40℃~+105℃
Viscosity
5~500 cSt
Electrical data
Voltage
12 V
24 V
Resistance
4.8 Ω
20.8 Ω
Connector
AMP Junior Timer
DEUTSCH DT04-2P
Protection
IP6K6/IPX9K
Wire standard
UL 758
Insulating materials
PVC

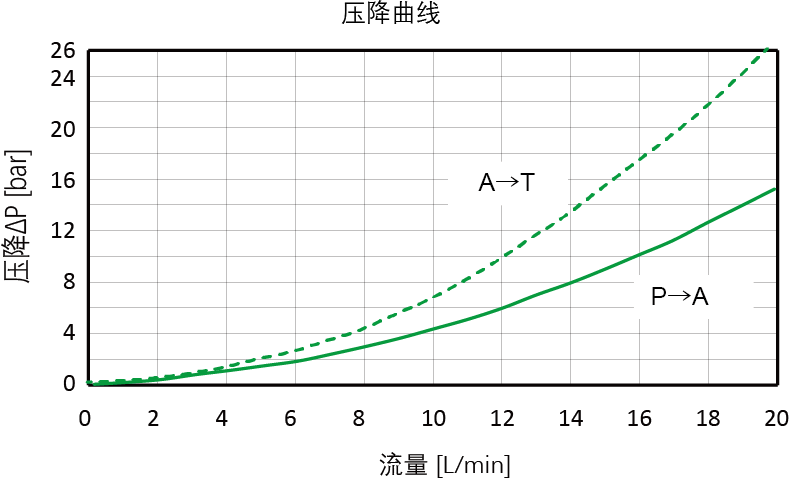

Performace curve

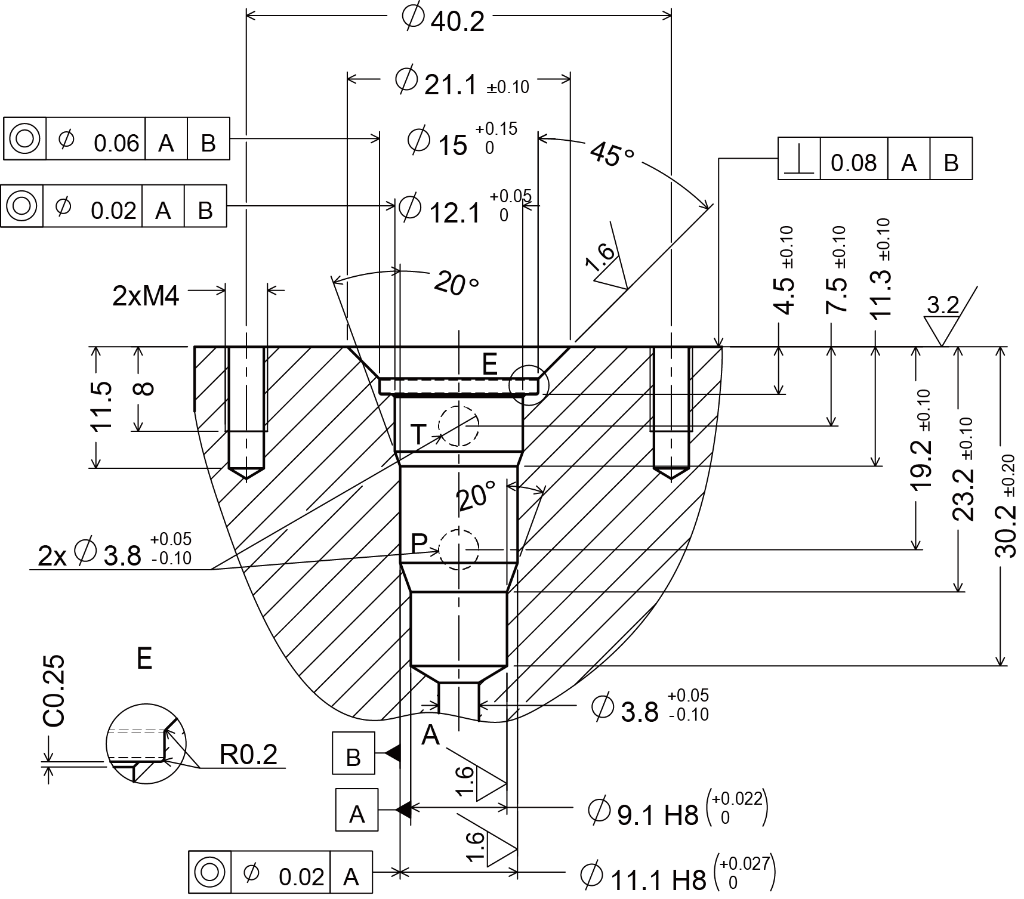

Dimension
AMP Junior Timer
Deutsch DT04-2P
